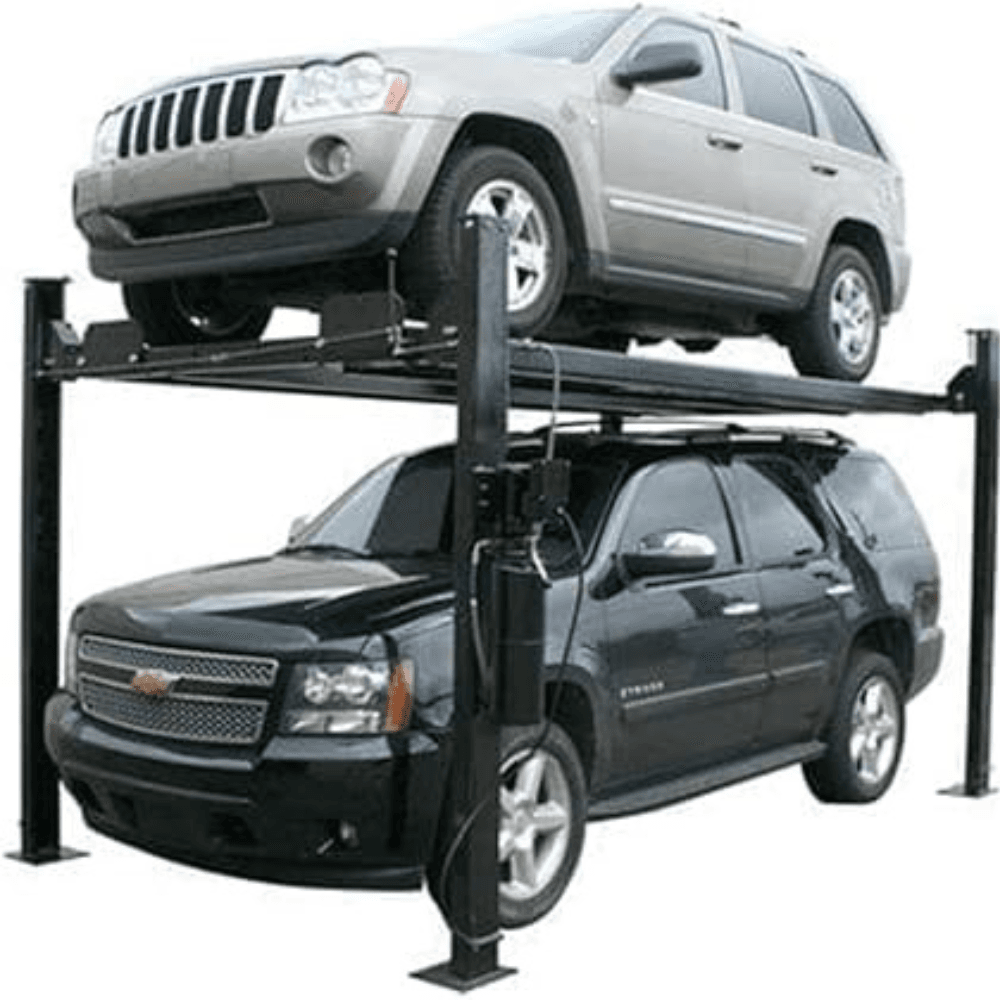

Atlas Garage Pro 8000 Four-Post Lift
The Atlas Garage Pro 8000 is a heavy-duty, 8,000 lb. capacity four-post lift, designed for homeowners, classic car enthusiasts, and restoration shops. This storage/service lift allows for easy vehicle maintenance and long-term storage, making it an ideal choice for maximizing garage space.
With its lock ladder column design, double-lock safety system, and single-point lock release, the Atlas Garage Pro 8000 ensures secure lifting and ease of use. This lift does not need to be anchored to the floor, making it a freestanding and portable option.
The inclusion of caster wheels, steel approach ramps, plastic drip trays, and a steel jack tray makes this lift one of the most feature-packed four-post lifts in its class.
Key Features & Benefits
- 8,000 lb. Lifting Capacity – Supports cars, light trucks, and SUVs.

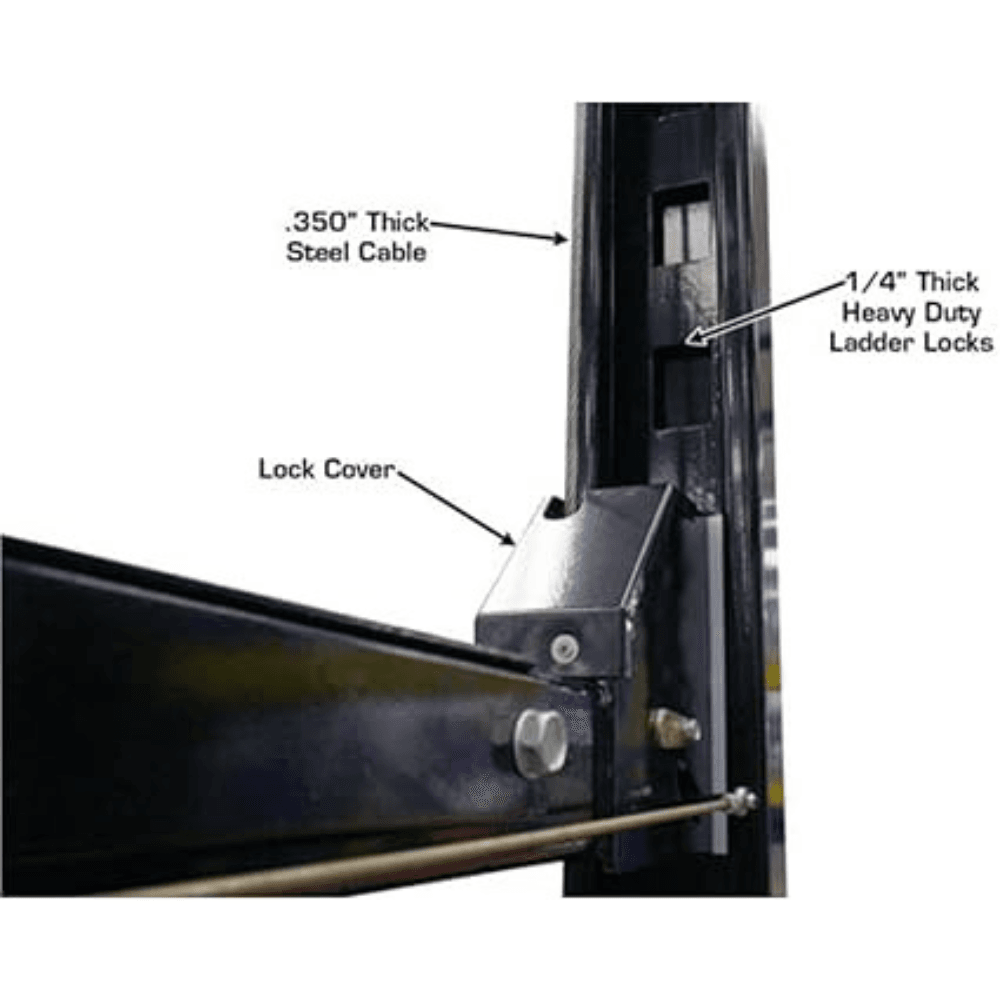

- Lock Ladder Column Design – Provides infinite runway locking positions. Allows users to adjust the height to accommodate any vehicle. Similar system used in professional-grade lifts found in dealerships.
- Double-Lock Safety System – Adds an extra level of security.
- Single-Point Lock Release – Simplifies operation and safety lock disengagement.

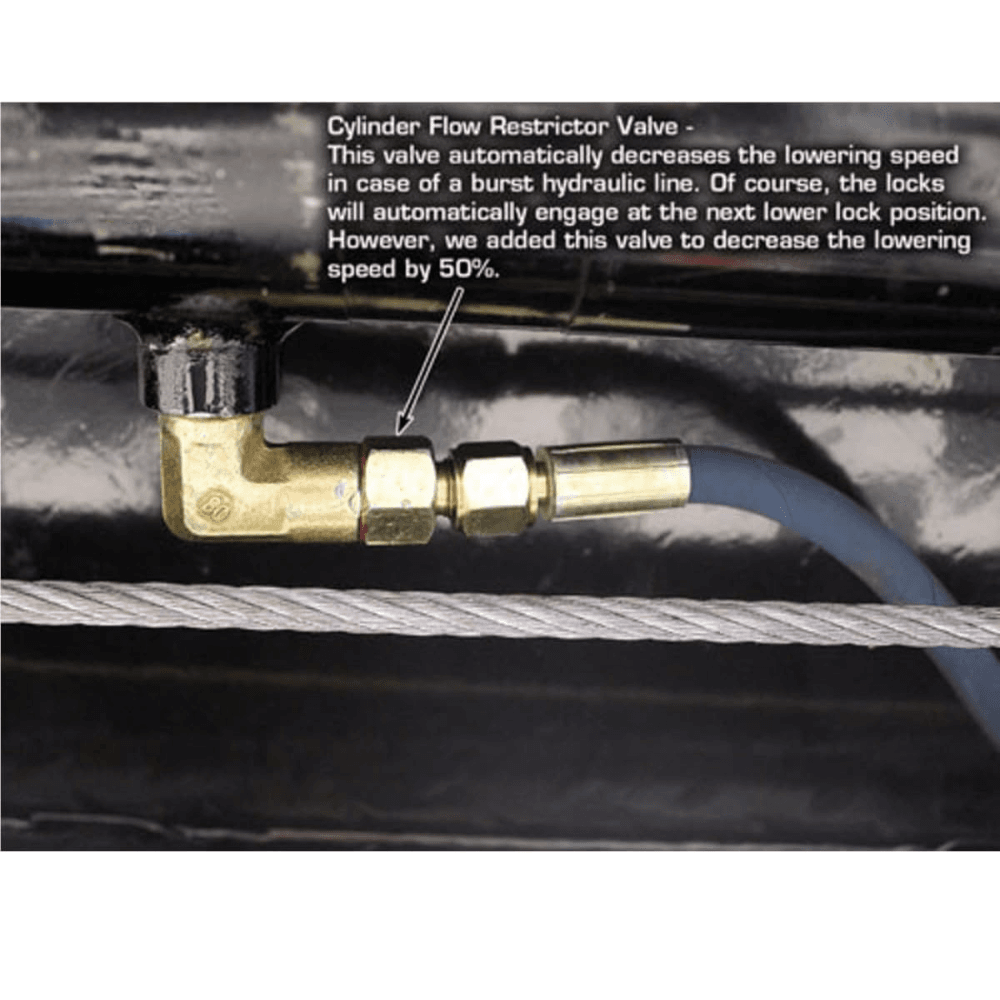

- Flow Restrictor in Hydraulic System – Ensures controlled lowering for safety.
- Zerk Fittings for Pulley Greasing – Enhances longevity and smooth operation.
- Caster Kit with Polyurethane Wheels (Included) – Allows easy movement across floors.
- Does Not Need to Be Anchored – Offers flexibility for placement and portability.
- Easy Installation – Can be assembled in about four hours by two people.
- Includes Accessories for Versatility – Steel approach ramps for easy vehicle loading; three plastic drip trays to catch fluids; steel jack tray for use with bottle jacks; rubber wheel chocks for additional security.
- Atlas Powder Coat Finish – Protects against corrosion and wear.
- 2-Year Structural & 1-Year Hydraulic Warranty – Ensures long-term reliability.
Technical Specifications
| Specification | Measurement / Detail |
|---|---|
| Lifting Capacity | 8,000 lbs. |
| Lifting Height to Top of Runway | 72″ (6′) |
| Clearance Under Runways | 67 1/2″ (5′ 7 1/2″) |
| Height of Columns | 83″ (6′ 11″) |
| Overall Width (Without Motor) | 104 3/8″ (8′ 8 3/8″) |
| Overall Width (With Motor) | 114″ (9′ 6″) |
| Overall Length (With Approach Ramps) | 207 1/2″ (17′ 3 1/2″) |
| Overall Length (Without Approach Ramps) | 175 1/2″ (14′ 7 1/2″) |
| Approach Ramp Length | 37″ (3′ 1″) |
| Runway Width | 21 1/4″ (1′ 9 1/4″) |
| Runway Length | 165 1/2″ (13′ 9 1/2″) |
| Runway Thickness | 4 1/2″ |
| Width Between Runways | 37 3/8″ |
| Width Between Runway Rails | 31 3/4″ |
| Outside Runway to Outside Runway | 74 3/4″ (6′ 2 1/4″) |
| Clearance Between Columns | 94 1/2″ (7′ 10 1/2″) |
| Length Between Columns | 157 1/2″ (13′ 1 1/2″) |
| Base of Column | 10 1/8″ x 11 3/4″ |
| Maximum Wheel Base | 153 1/2″ (12′ 9 1/2″) |
| Drive-Thru Width (Outside of Tire to Outside of Tire) | 80 1/2″ (6′ 8 1/2″) |
| Cable Diameter | .350″ |
| Steel Gauge | 6 Gauge (.1875″ / 3/16″ / 4.75mm) |

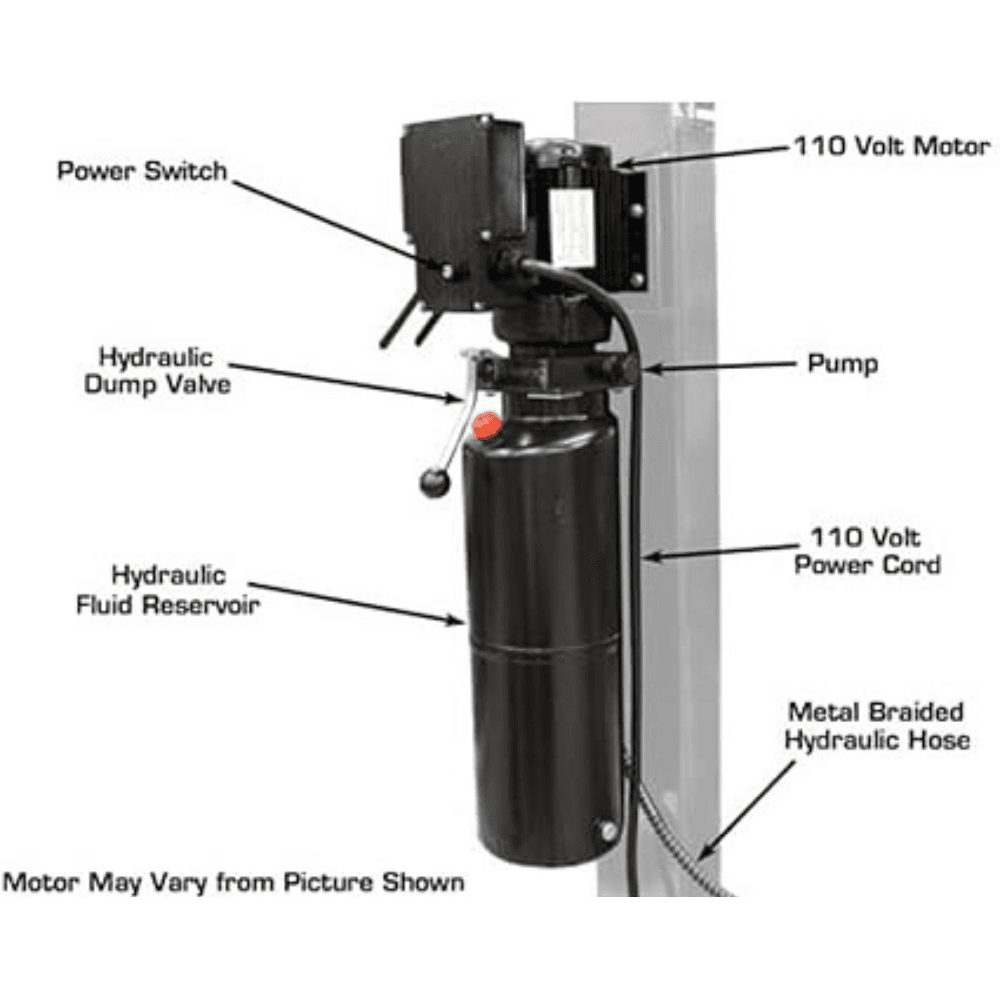

| Motor | 110V Electric Operation (30 Amp Breaker Required) |
| Shipping Weight | 1,720 lbs. |
| Oil Requirement | 3-5 Gallons AW32/AW46 |
Locking Positions Under Runway (+/- 2″ Height)
- 19 ½”
- 24″
- 25 ½”
- 30″
- 31 ½”
- 36″
- 37 ½”
- 42″
- 43 ½”
- 48″
- 49 ½”
- 54″
- 55 ½”
- 60″
- 61 ½”
- 66″
- 67 ½”
- 72″
Why Choose the Atlas Garage Pro 8000?
The Atlas Garage Pro 8000 is the perfect choice for vehicle storage and maintenance, offering professional-grade features at an affordable price. Its portable design, secure locking system, and durable construction make it ideal for homeowners and restoration shops looking for a high-quality four-post lift.
With included accessories, easy installation, and the ability to move freely without anchoring, the Atlas Garage Pro 8000 is a top-tier solution for maximizing your garage space!
