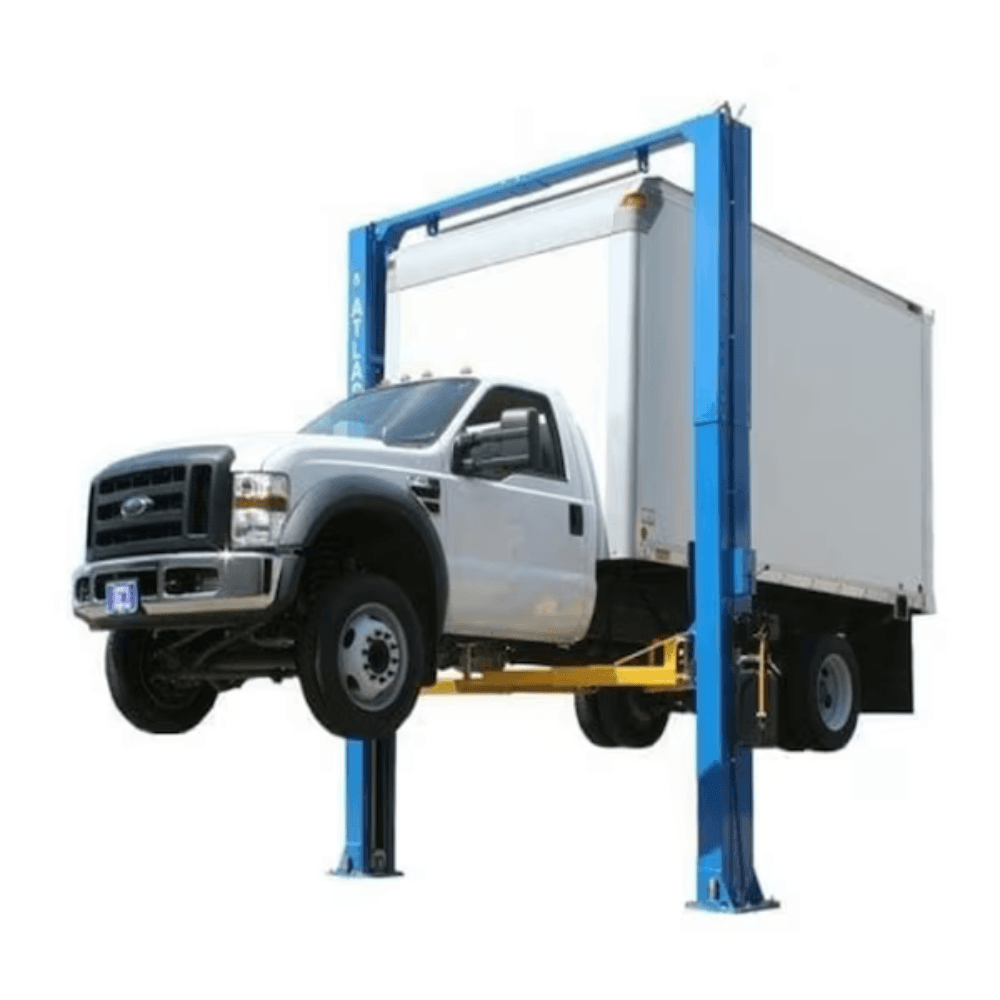

Atlas PV12PX Extra Tall & Extra Wide Two-Post Lift
The Atlas PV12PX is a commercial-grade two-post lift designed to accommodate both long-wheelbase trucks and passenger cars. With an impressive 12,000 lb. capacity, this lift is built for durability and versatility, making it ideal for professional auto shops and serious automotive enthusiasts.
The extra-wide column spacing and high lifting clearance allow for a broad range of vehicles, including vans and box trucks, to be lifted with ease. Additionally, the adjustable height settings provide extra flexibility depending on the garage space and lifting needs.
Key Features & Benefits
- 12,000 lb. Capacity – Designed to lift heavy-duty vehicles, including trucks and large SUVs.
- Extra Tall & Extra Wide – Provides ample space for larger vehicles and easier access.
- Commercial Grade – Built for professional use with high-strength steel construction.
- Adjustable Height Settings – 165 inches (13′ 9″) or 177 inches (14′ 9″) standard options. Special low height setting of 150 inches (12′ 6″) requires additional cables.
- Symmetric Arms – Ensures balanced lifting for various vehicle types.
- Automatic Arm Restraints – Enhances safety by securing the arms in place.
- “Padded” Shut-Off Bar – Prevents damage by stopping the lift if the vehicle touches the top.
- Door Guards on Carriages – Protects vehicle doors from accidental contact with the lift.

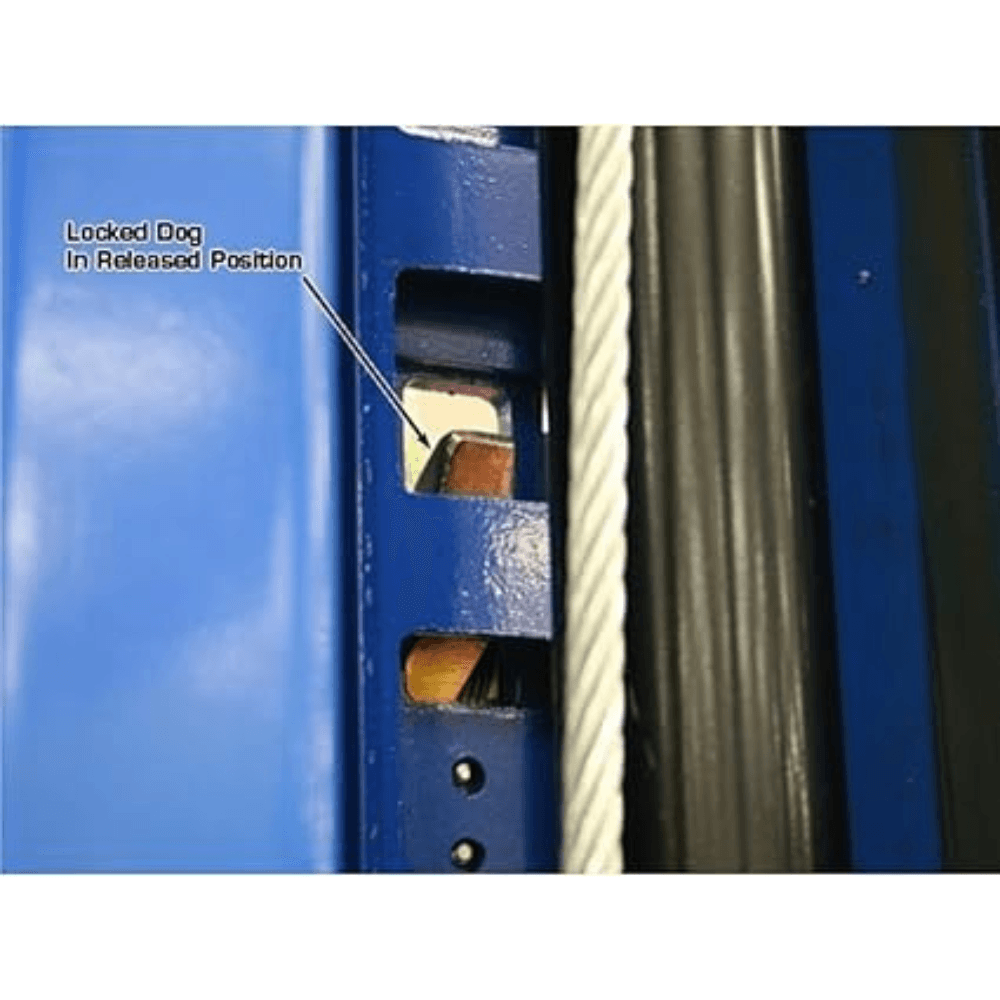

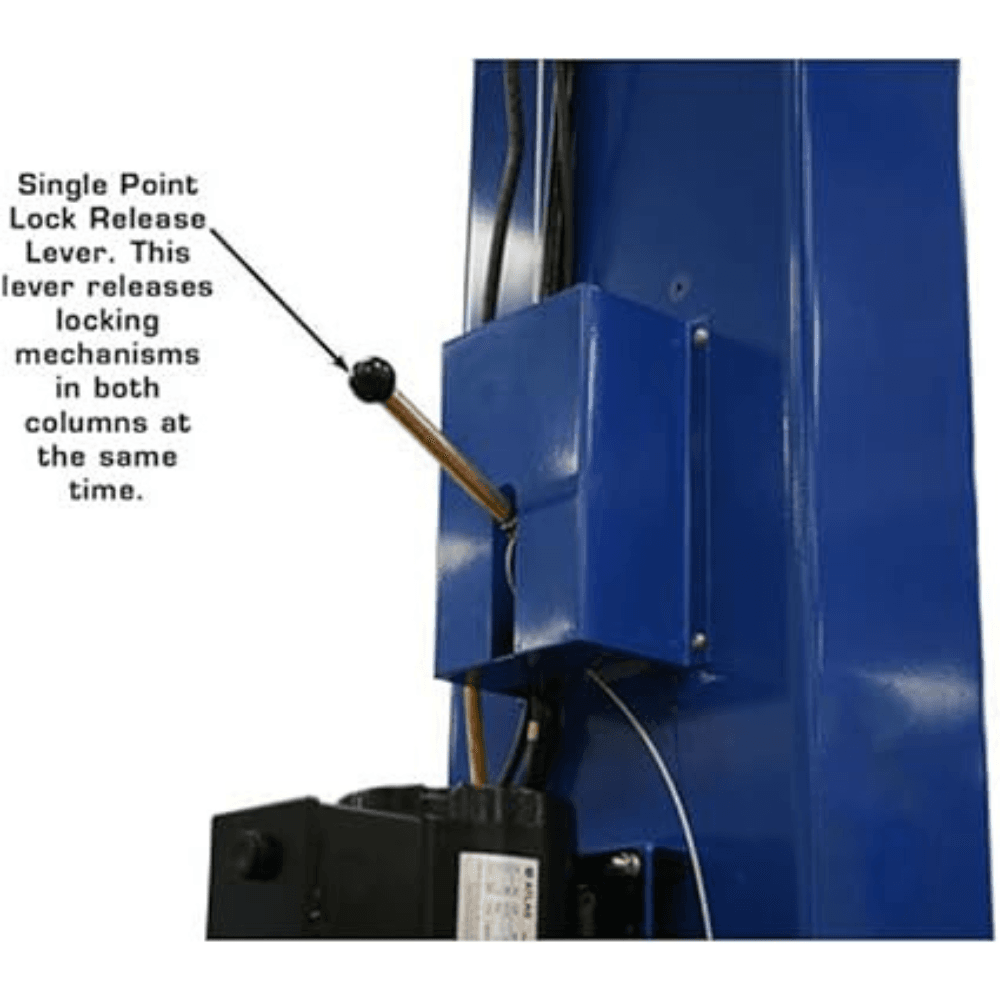

- Single Point Lock Release – Convenient safety lock release system for easy operation.

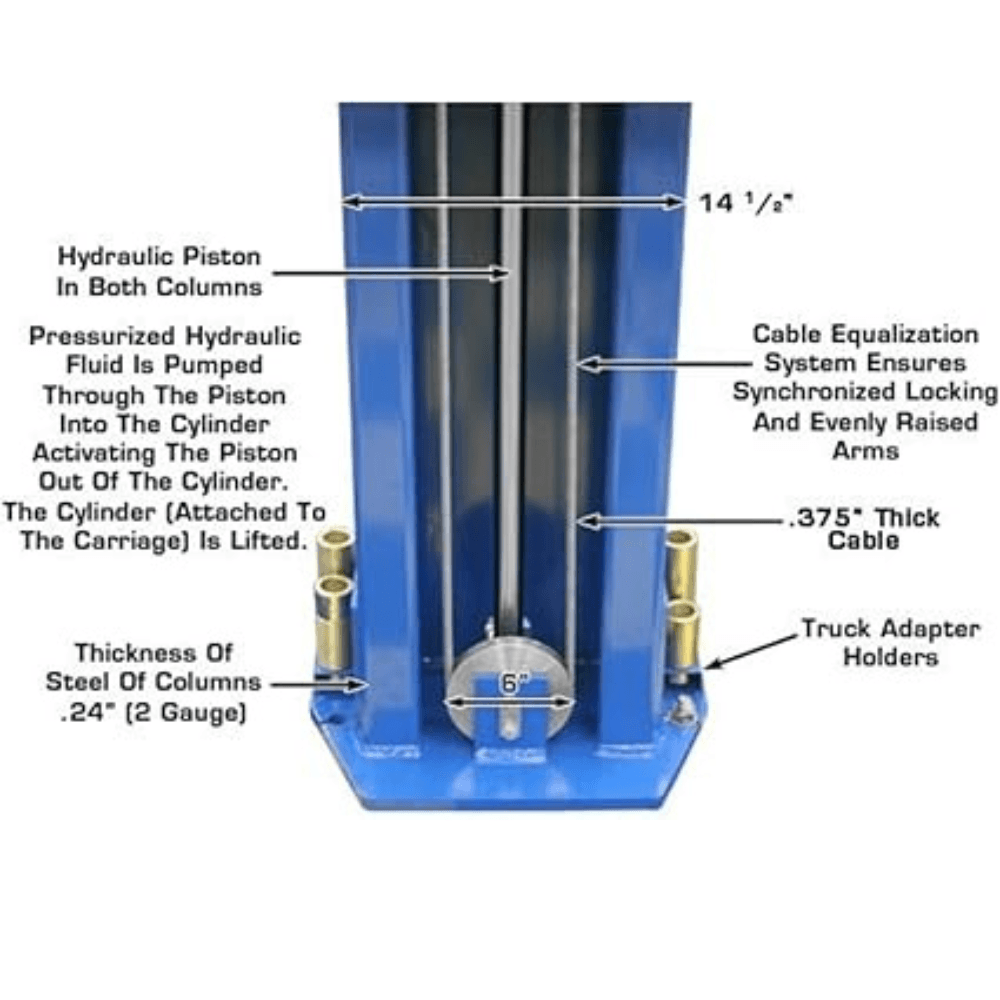

- Dual Direct-Drive Cylinders – Provides smooth and efficient lifting power.
- Powder Coat Finish – Increases durability and resistance to rust and wear.
- Free 12-Piece Truck Adapter Set – Allows for safe lifting of vehicles with different frame designs.
- Mounting Hardware Included – Ensures easy and secure installation.
- Warranty – 5 years structural, 2 years hydraulic (parts only).
Technical Specifications
| Specification | Measurement / Detail |
|---|---|
| Lifting Capacity | 12,000 lbs. |
| Overall Height | 165″ (13′ 9″) or 177″ (14′ 9″) |
| Special Low Height | 150″ (12′ 6″) (Requires Additional Cables) |
| Overall Floor Width | 153″ (12′ 6 3/8″) |
| Outside Column to Outside Column | 139 1/8″ (11′ 7 1/8″) |
| Maximum Lift Height (No Adapters) | 72 1/4″ |
| Maximum Lift Height (With Adapters) | 81″ |
| Minimum Arm Height | 4 1/2″ |
| Inside Column Width | 123″ (10′ 3″) |
| Drive-Thru Clearance | 109″ (9′ 1″) |
| Column Size | 7 1/2″ x 14 1/2″ |
| Column Steel Thickness | 6mm |

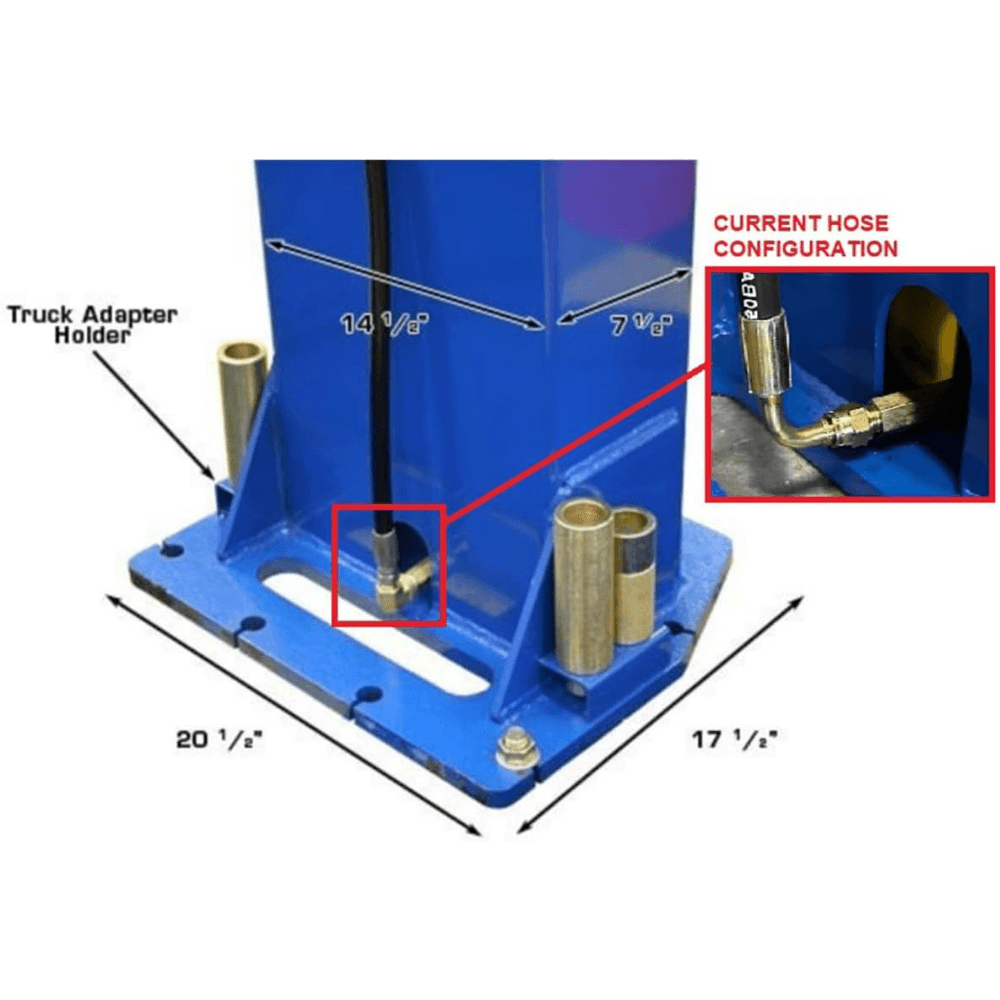

| Baseplate Size | 17 1/2″ x 20 1/2″ |
| Motor/Electrical Requirements | 220V, Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight | 2,160 lbs. |
| Adapter Heights | 4 at 1.25″, 4 at 2.5″, 4 at 4″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
| Concrete Requirement | Minimum 6″ thick, 3000 psi rating |
Final Thoughts
The Atlas PV12PX is the perfect solution for shops and professionals who need maximum lifting capability, extra clearance, and wide access for large vehicles. Its commercial-grade construction ensures long-term reliability, and with multiple height settings, it adapts to different garage setups.
Whether you’re lifting fleet vehicles, long-wheelbase trucks, or commercial vans, the Atlas PV12PX provides the strength, durability, and space needed to get the job done safely and efficiently.
